Place of Origin: | China |
---|---|
Brand Name: | Yeli |
Model Number: | HOG4S10 |
Minimum Order Quantity: | 360Meter |
Price: | negotiable |
Packaging Details: | wrapped with yellow/white woven belt or plastic firm |
Delivery Time: | 15-20 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 200,000 meter per month |
Reinforcement: | Four Layers Of Alternating Direction Steel Wire Spiral | Material: | Synthetic Rubber |
---|---|---|---|
Color: | Black | Size: | 1/4"~2" |
Cover: | Weather Resistant Synthetic Rubber,One Layer Of Oil And Weather Resistant Synthetic Rubber | Product Name: | 16mm Diameter 4 Layer Wire Spiral Hydraulic Hose With Steel Wire Sprial |
Application: | Industrial,suitable To Carry Hydraulic Fluids,high ImPUlse Hydraulic Applications. | Length: | 20m 40m 50m 100m |
Temperature: | -40 To +250 (-40℃ To +121℃) | Surface: | Black Wrapped |
Sample: | Available | Business Type: | Manufacturer |
Oem Service: | Accept | Item: | 4 Steel Wire Reinforcement Hydraulic Hose 4SP Factory Price |
High Light: | ISO 3862 Wire Spiral Hydraulic Hose,100m Wire Spiral Hydraulic Hose,ISO 3862 2inch hydraulic hose |

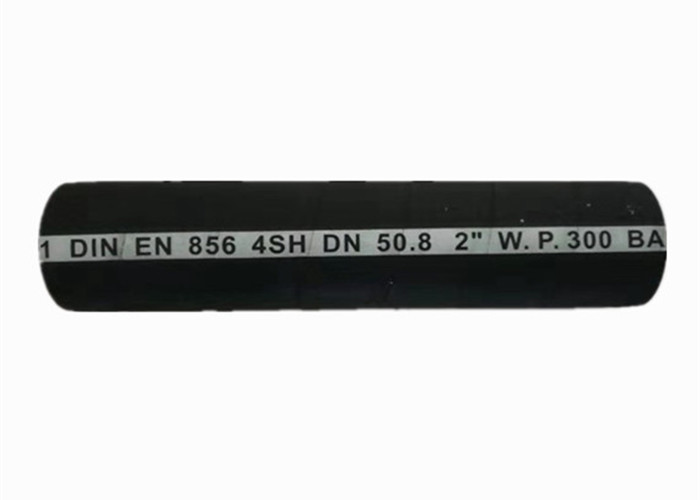

Flexible High Pressure Temperature Hoses En856 4sp 4sh For Heavy Duty Equipment For Power Steering
Wrapped Surface Hydraulic Rubber Hose
Applicable Standard : EN 856 - 4SP / ISO 3862
Tube: Black colour, Synthetic rubber resistant to oil and water
Reinforcement:Four high tensile steel wire spirals
Cover:Black colour, Synthetic rubber resistant to abrasion and weather, oil & ozone
Application:
Medium pressure Hydraulic Lines 165 to 450 bar and hydrostatic transmission lines for use with petroleum, synthetic or water based fluids in Hydraulic systems. Suitable for Earthmoving & Material handling equipments and machineries/systems
DN | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | ||||
inch | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | ||
6 | 1/4 | 6.4 | 18.1 | 45 | 6525 | 180 | 26100 | 100 | 0.628 | 20 to 40 | |
10 | 3/8 | 9.5 | 21.6 | 44.5 | 6453 | 178 | 25810 | 110 | 0.8 | 20 to 40 | |
13 | 1/2 | 12.7 | 24.8 | 41.5 | 6018 | 166 | 24070 | 120 | 0.979 | 20 to 40 | |
16 | 5/8 | 15.9 | 28.5 | 35.0 | 5075 | 140 | 20300 | 140 | 1.273 | 20 to 40 | |
19 | 3/4 | 19.0 | 32.5 | 35.0 | 6000 | 140 | 16240 | 170 | 1.726 | 20 to 40 | |
25 | 1 | 25.4 | 39.7 | 28.0 | 5500 | 112 | 12180 | 340 | 2.324 | 20 to 40 | |
32 | 1 1/4 | 31.8 | 50.8 | 21.0 | 4700 | 84 | 12180 | 460 | 3.266 | 20 to 40 | |
38 | 1 1/2 | 38.1 | 57.2 | 18.5 | 4200 | 74 | 10730 | 560 | 3.894 | 20 to 40 | |
51 | 2 | 50.8 | 69.8 | 16.5 | 3600 | 66 | 9570 | 660 | 5.233 | 20 to 40 |
Braided hydraulic hose SAE 100 R1/EN853 1SN,SAE 100 R2/EN856 2SN,SAE 100 R3,R5,R6
Spiral hydraulic hose EN856 4SH,4SP,SAE 100R4,R12,R13
Thermoplastic hydraulic hose
and a number of specialty hose REFUEL HOSE,STEAM HOSE, AIR HOSE,GAS HOSE
Each hydraulic hose from us is available with inside diameters from 1/4" to 2". Depending on the material you select for your hydraulic hose, the working temperatures range from -40ºC to +250ºC for standard hoses and -65ºC to +450ºC for specialty hoses.
We have a number of hydraulic hose options with pressure ratings from SAE 100R1 (DIN EN853 1SN) and up, to withstand even the highest operating pressures. We also supply our specially designed high-pressure hydraulic hose for extremely high pressure applications.
We supply hydraulic hose constructed from a variety of materials to meet the needs of any application.
