Place of Origin: | China |
---|---|
Brand Name: | Yeli |
Minimum Order Quantity: | 400 Meter |
Price: | negotiable |
Packaging Details: | wrapped with yellow/white woven belt or plastic firm |
Delivery Time: | 15-20 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 200,000 meter per month |
Reinforcement: | 4 Steel Wire,high-tensile Steel Wire.,Four Layers Of Alternating Direction Steel Wire Spiral | Material: | Synthetic Rubber,Rubber+Steel Wire |
---|---|---|---|
Color: | Black | Size: | 6mm To 51mm,1/4"~2" |
Cover: | Weather Resistant Synthetic Rubber,One Layer Of Oil And Weather Resistant Synthetic Rubber,Cloth | Product Name: | 4 Steel Wire Spiral Sae 100 R9 Specifications Hydraulic Hose,6mm Diameter 4 Layer Wire Spiral Hydraulic Hose With Steel Wire Sprial,4 Wire Spiral 4SP Hydraulic Hose,Hydraulic Hose High Press Multispiral Hose 4sp |
Application: | Industrial,suitable To Carry Hydraulic Fluids,used For Hydraulic Oil Delivery,high ImPUlse Hydraulic Applications. | Length: | 50m,40m |
Type: | Hydraulic Hose | Temperature: | -40~100°C |
Name: | High Pressure Hydraulic Rubber Hose | Surface: | Black Wrapped |
Sample: | Available | Working Pressure: | 16.5 To 45Mpa |
Business Type: | Manufacturer,Factory | Feature: | Spiral,abrasion And Weather Resistant |
Oem Service: | Accept | Item: | 4 Steel Wire Reinforcement Hydraulic Hose 4sp Factory Price |
High Light: | DIN EN856 Spiral Wire Hose,40m length Spiral Wire Hose,DIN EN856 wire braided hose |

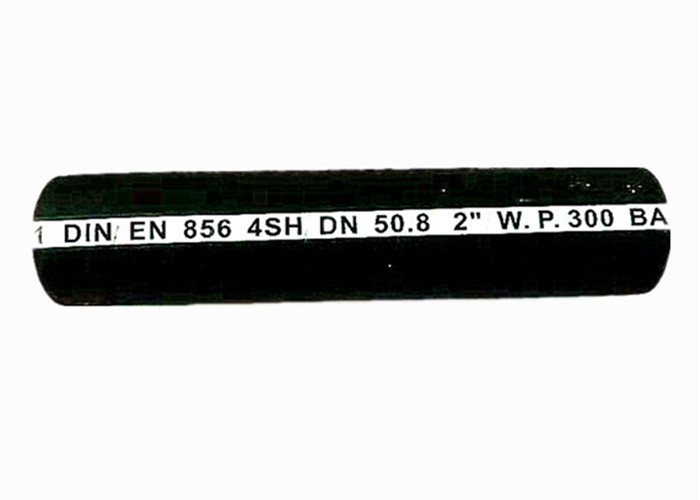

Wire Spiral Rubber Hose Of DIN En856 4sp Hydraulic Hose And Fittings
Wire Spiral Hydraulic Hose: DIN EN856 4SP / ISO3862
Tube : Oil resistant synthetic rubber
Reinforcement : four high tensile steel wire spiral layers
Cover : abrasion and weather resistant synthetic rubber
Temperature range : -40 ℃ to +100 ℃
DN | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | ||||
inch | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | ||
6 | 1/4 | 6.4 | 18.1 | 45 | 6525 | 180 | 26100 | 100 | 0.628 | 20 to 40 | |
10 | 3/8 | 9.5 | 21.6 | 44.5 | 6453 | 178 | 25810 | 110 | 0.8 | 20 to 40 | |
13 | 1/2 | 12.7 | 24.8 | 41.5 | 6018 | 166 | 24070 | 120 | 0.979 | 20 to 40 | |
16 | 5/8 | 15.9 | 28.5 | 35.0 | 5075 | 140 | 20300 | 140 | 1.273 | 20 to 40 | |
19 | 3/4 | 19.0 | 32.5 | 35.0 | 6000 | 140 | 16240 | 170 | 1.726 | 20 to 40 | |
25 | 1 | 25.4 | 39.7 | 28.0 | 5500 | 112 | 12180 | 340 | 2.324 | 20 to 40 | |
32 | 1 1/4 | 31.8 | 50.8 | 21.0 | 4700 | 84 | 12180 | 460 | 3.266 | 20 to 40 | |
38 | 1 1/2 | 38.1 | 57.2 | 18.5 | 4200 | 74 | 10730 | 560 | 3.894 | 20 to 40 | |
51 | 2 | 50.8 | 69.8 | 16.5 | 3600 | 66 | 9570 | 660 | 5.233 | 20 to 40 |
