Place of Origin: | China |
---|---|
Brand Name: | thompson |
Model Number: | BTH150 |
Minimum Order Quantity: | 360Meter |
Price: | negotiable |
Packaging Details: | wrapped with yellow/white woven belt or plastic firm |
Delivery Time: | 15-20 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 80,000 meter per month |
High Light: | 127mm Abrasion Resistant Hose,20bar Abrasion Resistant Hose,127mm Sandblast Rubber Hose |
---|

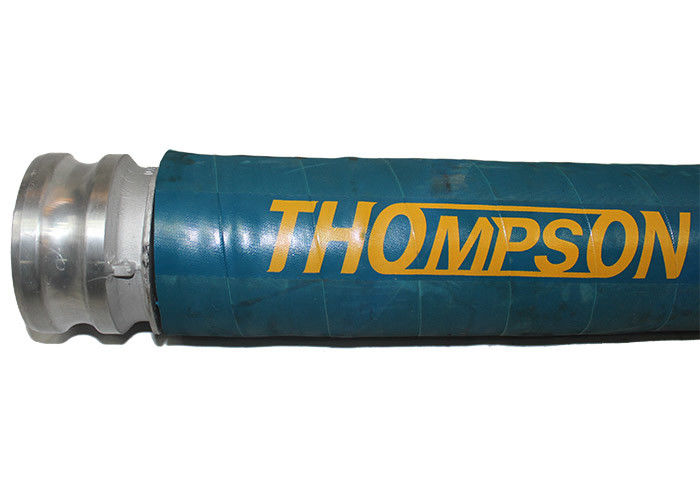

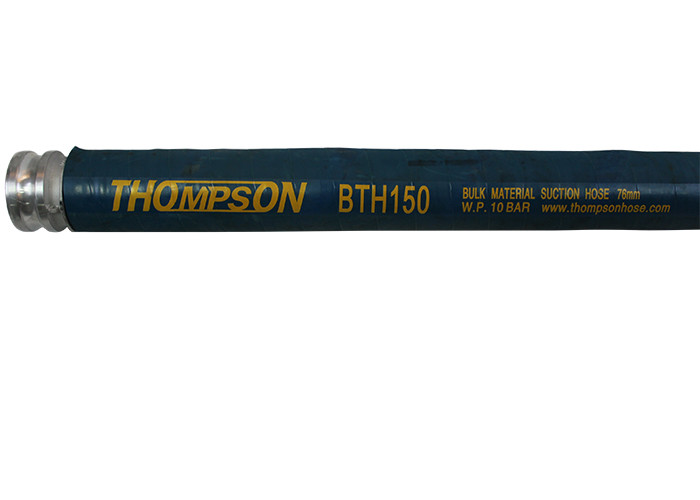

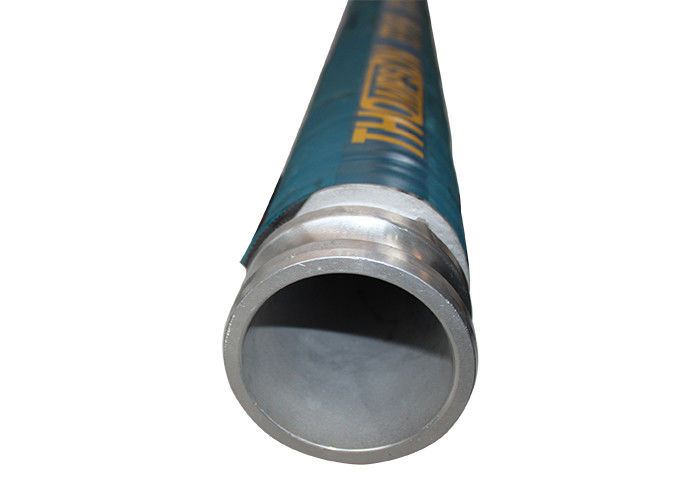

Flexible 2-1/2 " Bulk Material Suction Hose 10 / 17 / 20 Bar
Abrasion resistant Bulk material rubber suction hose
Application: Discharge hose used for dry bulk commodities.
Including limestone, ground silica, chalk, frac sand, china clay, dry cement and fertilizers.
Construction:
Tube - Synthetic abrasion resistant rubber
Reinforcement - synthetic yarn
Cover - black, synthetic rubber
Temperature range: -30℃ to 85℃
Specifications:
Spec. | I.D. mm | O.D. mm | W.P. Bar | B.P. bar | Bend radius (mm) | Weight(kg/m) |
2" | 50 | 68±1.5 | 10/17/20 | 30/51/60 | 200 | 2.6 |
2.5" | 64 | 85±1.5 | 10/17/20 | 30/51/60 | 250 | 4.3 |
3" | 76.2 | 102±1.5 | 10/17/20 | 30/51/60 | 270 | 6.1 |
3.5" | 89 | 116±1.5 | 10/17/20 | 30/51/60 | 290 | 8 |
4" | 101.6 | 130±1.75 | 10/17/20 | 30/51/60 | 300 | 9 |
4.5" | 115 | 143±2 | 10/17/20 | 30/51/60 | 320 | 10.2 |
5" | 127 | 158±2 | 10/17/20 | 30/51/60 | 360 | 12.5 |
