Place of Origin: | China |
---|---|
Brand Name: | thompson |
Model Number: | SB300 |
Minimum Order Quantity: | 1000Meter |
Price: | negotiable |
Packaging Details: | wrapped with yellow/white woven belt or plastic firm |
Delivery Time: | 15-20 working days |
Supply Ability: | 80,000 meter per month |
High Light: | 10Bar Abrasion Resistant Hose,2inch 10Bar Abrasion Resistant Hose,10Bar spiral hydraulic hose |
---|

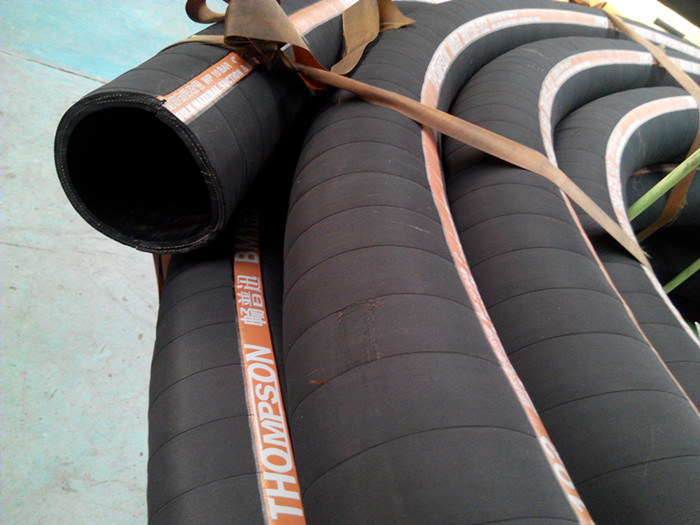

Size 2”Sandblast Coupling Hose Suction And Discharge Hose W. P. 10 / 17 /20 Bar
ANTI-ABRASION SAND BLAST/ SANDBLASTING RUBBER HOSE
Temperature range: -40℃(-40℉)to +85℃(+185℉)
Inner layer: black, smooth, wear-resistant, anti-static
Reinforcement: high tensile cord
Outer layer: black, smooth, wear-resistant, anti-static
Hose length: 61m(200 foot), other length can be provided according to requirements.
Thompson Sand Blast Hose provides excellent heavy duty service across multiple medium pressure blasting and transfer applications. The thick rubber tube provides additional resistance to sand and other abrasive materials going through the hose, and dissipates static electrical charge for operator safety. The thick hose wall provides kink resistance for unimpeded flow, and resistance to abrasion and weathering for maximum performance.
Markets:
• Construction
• General Industrial
Features/Benefits:
• Tube: Black natural rubber for superior abrasion resistance to 180°F.
• Reinforcement: Multiple textile plies for strength and durability
• Cover: Black synthetic rubber for resistance to abrasion, cuts, gouging, scuffs and weathering.
Applications:
- media
• Abrasive materials
• Sand
- usage
• Cleaning
• Conditioning
• Stripping
• Construction sites
• Highway maintenance
• Shipyards
Safety/Technical:
• Design Factor: 3:1
abrasive wear resistant nbr sandblast coupling hose
I.D. | O.D. | Standard | W.P. | B.P. | Max. Length | Weight |
3/8" | 23mm | ISO 4079 | 20bar(290Psi) | 60bar(900Psi) | 50m/roll | 0.50kg/m |
1/2" | 26mm | ISO 4079 | 20bar(290Psi) | 60bar(900Psi) | 50m/roll | 0.68kg/m |
5/8" | 29mm | ISO 4079 | 20bar(290Psi) | 60bar(900Psi) | 50m/roll | 0.78kg/m |
3/4" | 32mm | ISO 4079 | 20bar(290Psi) | 60bar(900Psi) | 50m/roll | 0.88kg/m |
1" | 39mm | ISO 4079 | 20bar(290Psi) | 60bar(900Psi) | 61m/roll | 1.00kg/m |
1 1/4" | 48mm | ISO 4079 | 20bar(290Psi) | 60bar(900Psi) | 61m/roll | 1.18kg/m |
1 1/2" | 56mm | ISO 4079 | 20bar(290Psi) | 60bar(900Psi) | 61m/roll | 1.36kg/m |
1 3/4" | 63mm | ISO 4079 | 20bar(290Psi) | 60bar(900Psi) | 61m/roll | 1.62kg/m |
2" | 69mm | ISO 4079 | 20bar(290Psi) | 60bar(900Psi) | 61m/roll | 1.80kg/m |
