Hengshui Thompson Hose Technologies Co., Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | thompson |
| Model Number: | HOG2B |
| Minimum Order Quantity: | 1000Meter |
| Price: | negotiable |
| Packaging Details: | wrapped with yellow/white woven belt or plastic firm |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200,000 meter per month |
| Material: | Synthetic Rubber,Rubber+Steel Wire | Color: | Black Or Other |
|---|---|---|---|
| Size: | 1/4"~2" | Cover: | Weather Resistant Synthetic Rubber |
| Application: | Industrial,suitable To Carry Hydraulic Fluids,used For Hydraulic Oil Delivery,high ImPUlse Hydraulic Applications. | Length: | 20m 40m 50m 100m |
| Name: | EN 853 2SN Sae 100 R2at 3/8 Inch Wire Braid Hydraulic Hose | Working Temperature: | -40~+120 |
| Oem Service: | Accept,Yes | Item: | Hydraulic Hose R2 2SN |
| High Light: | en 853 2sn wire braid hydraulic hose,3/8 inch wire braid hydraulic hose,wire braid hydraulic hose sae 100 r2at |
||
3/8" En 853 2sn / Sae 100 R2at Wire Braid Hydraulic Rubber Hose Wp 330 Bar
Steel Wire Braid Hydraulic Hose: SAE 100 R2AT/DIN EN 853 2SN
Tube: Oil resistant synthetic rubber
Reinforcement: Two high tensile steel wire braid
Cover: Abrasion and weather resistant synthetic rubber
Temperature range : -40 ℃ to +100 ℃
Applicable standards: EN 853 2SN/SAE 100 R2AT
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
| 5 | 3/16 | 4.8 | 11.1 | 13.4 | 41.4 | 6000 | 165 | 23720 | 89 | 0.32 | 50/100 |
| 6 | 1/4 | 6.4 | 12.7 | 15.0 | 40.0 | 5800 | 160 | 22840 | 102 | 0.36 | 50/100 |
| 8 | 5/16 | 7.9 | 14.3 | 16.6 | 36.0 | 5250 | 140 | 20000 | 114 | 0.45 | 50/100 |
| 10 | 3/8 | 9.5 | 16.7 | 19.0 | 33.1 | 4800 | 132 | 18840 | 127 | 0.54 | 50/100 |
| 13 | 1/2 | 12.7 | 19.8 | 22.2 | 27.6 | 4000 | 110 | 15720 | 178 | 0.68 | 50/100 |
| 16 | 5/8 | 15.9 | 23 | 25.4 | 25.0 | 3630 | 100 | 14280 | 203 | 0.8 | 50/100 |
| 19 | 3/4 | 19.0 | 27 | 29.3 | 21.5 | 3120 | 85 | 12280 | 241 | 0.94 | 50/100 |
| 25 | 1 | 25.4 | 34.9 | 38.0 | 16.5 | 2400 | 65 | 9420 | 305 | 1.35 | 50 |
| 32 | 1 1/4 | 31.8 | 44.5 | 48.3 | 12.5 | 1820 | 50 | 7140 | 419 | 2.15 | 20/40 |
| 38 | 1 1/2 | 38.1 | 50.8 | 54.6 | 9.0 | 1310 | 36 | 5140 | 508 | 2.65 | 20/40 |
| 51 | 2 | 50.8 | 63.5 | 67.3 | 8.0 | 1160 | 32 | 4560 | 635 | 3.42 | 20/40 |
Featured Description
Structure of 2hydraulic hose manufacturers EN853 1SN 2SN /SAE 100 R1 R2 Wire Braided hydraulic hose

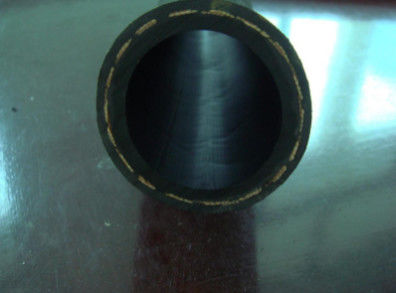

High pressure hydraulic hose Consists of inner tube, middle layer, two wire reinforcements and cover. Inner tube is to transmit liquid under pressure and protect wire against corrosion while cover is to protect wire against abrasion, wire layer is the structure materials that providing reinforcement.
Application
High pressure hydraulic hose Mainly used in mine hydraulic support, oil exploration, suitable to engineer construction, crane transport, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery various machine tools.
company information
the main product is including all kinds of wire braid hydraulic hose etc. in order to supply the best exporting service for the customer, our own factory and trading company, so that we can supply the good quality product and competitive price and attentive service for the customer. now the rubber wire braid hydraulic hose products have been exported to south asia, the middle east, europe, and africa.
faq
q1: are you factory or trading company?
a: we are factory, specialized in hose. welcome to visit our factory.
q2: what is your terms of packing?
a: plastic woven belt, carton packaging, wooden cases or your request
q3: what is your terms of payment?
a: t/t 50% as deposit, and 50% before delivery. we'll show you the photos of the products and packages before you pay the balance.
q4: what is your terms of delivery?
a: exw, fob, cfr, cif, ddu.
q5: how about your delivery time?
a: generally, it will take 25 to 55 days after receiving your advance payment. the specific delivery time depends on the items and
the quantity of your order.
q6: can you produce according to the samples?
a: yes, we can produce by your samples or technical drawings. we can build the molds and fixtures.
q7: what is your sample policy?
a: we can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
q8: do you test all your goods before delivery?
a: yes, we have 100% test before delivery
