Place of Origin: | China |
---|---|
Brand Name: | thompson |
Model Number: | UH200 |
Minimum Order Quantity: | 1000Meter |
Price: | negotiable |
Packaging Details: | wrapped with yellow/white woven belt or plastic firm |
Delivery Time: | 15-20 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 80,000 meter per month |
Color: | Black,blue,red,Various,red Or As Request | Material: | SBR,EPDM |
---|---|---|---|
Size: | As Per Customer's Design,OEM Standard Size | Application: | Delivery Of Industrial Chemicals |
Reinforcement: | High Tensile Textile Cords,one High Tensile Steel Braided,Fiber | Product Name: | Chemical Resistant Rubber Hose For Transportation |
Cover: | Environment Resistant Synthetic Rubber,Smooth/ Wrapped,WEATHER AND HEAT RESISTANC | Sample: | Available,Free |
Temperature: | -40~+70℃ | Working Pressure: | 10-20 Bar |
High Light: | 19mm Chemical Resistant Rubber Hose,EPDM Chemical Resistant Rubber Hose,19mm reinforced suction hose |

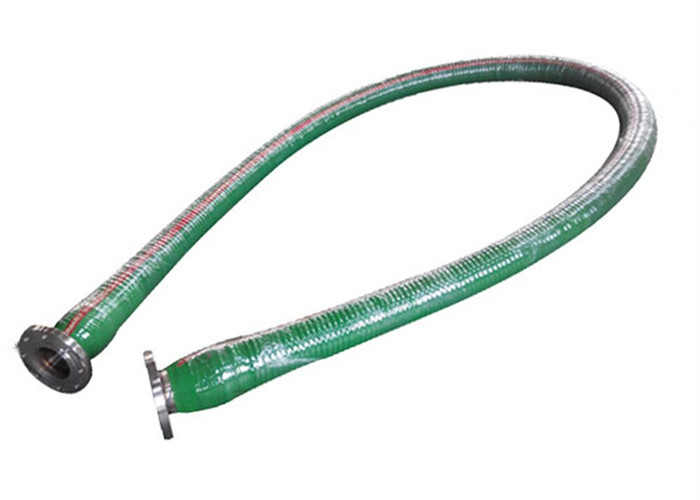

OEM Multi-Purpose Industrial Rubber Tube Epdm Chemical Hose Manufacturers
Application: for use with highly corrosive /aggressive chemicals.it will handle almost of all known industrial chemicals.
Reinforcement: High tensile textile cord with flexible helix steel wire
Inner tube: UHMWPE
Cover: Ozone and abrasion resistant, smooth epdm blend which also
resists general chemical & hydrocarbon exposure
Temperature: -40℃~ +70℃ (- 40°F~+158°F)
Tube
|
UHMWPE+EPDM
|
Reinforcement
|
High tensile textile with helix steel wire
|
Cover
|
EPDM synthetic rubber
|
Ideal Working Temperature
|
-40℃ to 120℃
|
Safety Factor
|
3:1
|
Color
|
Blue/Green
|
Application
|
A more flexible chemical hose designed to handle 98% of all chemicals,solvents and corrosive liquids in both pressure and suction service.
|
I.D.
|
O.D.
|
W.P.
|
B.P.
|
B.R.
|
Weight
|
Length
|
|||
mm
|
mm
|
psi
|
bar
|
psi
|
bar
|
mm
|
kg/m
|
ft
|
m
|
19
|
31
|
150
|
10
|
450
|
30
|
200
|
0.67
|
200
|
61
|
25
|
37
|
150
|
10
|
450
|
30
|
250
|
0.84
|
200
|
61
|
32
|
45
|
150
|
10
|
450
|
30
|
250
|
1.20
|
200
|
61
|
38
|
52
|
150
|
10
|
450
|
30 |
250
|
1.52
|
200
|
61
|
51
|
65
|
150
|
10
|
450
|
30
|
300
|
1.96
|
200
|
61
|
64
|
80
|
150
|
10
|
450
|
30
|
400
|
2.95
|
200
|
61
|
76
|
92
|
150
|
10
|
450
|
30
|
400
|
3.44
|
200
|
61
|
102
|
120
|
150
|
10
|
450
|
30
|
500
|
5.06
|
200
|
61
|
152
|
172
|
150
|
10
|
450
|
30
|
600
|
8.84
|
200
|
61
|
NOTE: Other parameters are by your requirements.
|
