Place of Origin: | China |
---|---|
Brand Name: | thompson |
Minimum Order Quantity: | 1000Meter |
Price: | negotiable |
Packaging Details: | wrapped with yellow/white woven belt or plastic firm |
Delivery Time: | 15-20 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 200,000 meter per month |
Color: | Red Or As Your Requirement | Material: | EPDM Rubber |
---|---|---|---|
Application: | Industrial,fire And Other Super Hot Steam,oily And Fatty Foods | Reinforcement: | High Tensile Steel Wire,One Or Two |
Size: | 5/16"~2" | Product Name: | China Manufacture High Pressure Steam Rubber Hose |
Type: | Steam Hose | Length: | 20m 40m 50m 100m,Customize |
Cover: | Weather Resistant Synthetic Rubber,smooth Or Fabric | Name: | High Pressure High Temperature Steam Rubber Hose |
Temperature: | -40 °C +220 °C | Surface: | Smooth And Cloth |
Feature: | The Hose Is Flexible And With Small Deformation Under Pressure ;,High Wear Resistance | Business Type: | Manufactury,Factory |
High Light: | 5/8inch Rubber Steam Hose,EPDM Rubber Steam Hose,5/8inch steam cleaner hose |

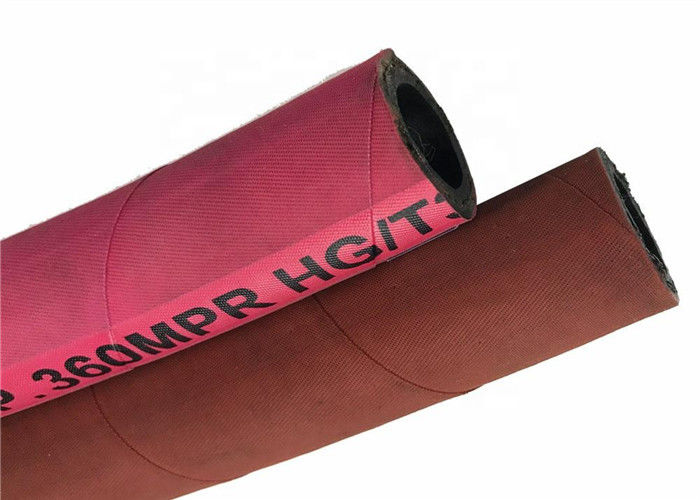

Red Heat Resistant High Pressure Flexible Steel Wire Braided Steam Rubber Hose
Wire Braided Steam Hose
Construction: Made of excellent heat-resistant rubber, The reinforcement is braided with brass coated wire.
Applications: For conveylng saturated steam and superheated water continually at a temperature below 150 ℃ or intermittently at a temperature below 160 ℃ .
W/B | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Length | |||
DN | inch | mm | MPa | psi | MPa | psi | mm | metres | |
1W | 10 | 3/8 | 21.5 | 1.0 | 150 | 4.0 | 570 | 130 | 20/ 50 |
13 | 1/2 | 24.5 | 1.0 | 150 | 4.0 | 570 | 180 | 20/ 50 | |
16 | 5/8 | 27.5 | 1.0 | 150 | 4.0 | 570 | 205 | 20/ 50 | |
19 | 3/4 | 30.5 | 1.0 | 150 | 4.0 | 570 | 240 | 20/ 50 | |
22 | 7/8 | 33.5 | 1.0 | 150 | 4.0 | 570 | 280 | 20/ 50 | |
25 | 1 | 37.0 | 1.0 | 150 | 4.0 | 570 | 300 | 20/ 50 | |
32 | 1 1/4 | 44.0 | 1.0 | 150 | 4.0 | 570 | 420 | 20/ 40 | |
38 | 1 1/2 | 50.5 | 1.0 | 150 | 4.0 | 570 | 500 | 20/ 40 | |
45 | 1 3/4 | 57.5 | 1.0 | 150 | 4.0 | 570 | 500 | 20/ 40 | |
51 | 2 | 63.5 | 1.0 | 150 | 4.0 | 570 | 630 | 20/ 40 | |
64 | 2 1/2 | 77.5 | 1.0 | 150 | 4.0 | 570 | 700 | 20/ 40 | |
2W | 10 | 3/8 | 23.0 | 2.0 | 300 | 6.0 | 860 | 130 | 20/ 50 |
13 | 1/2 | 26.0 | 2.0 | 300 | 6.0 | 860 | 180 | 20/ 50 | |
16 | 5/8 | 29.0 | 2.0 | 300 | 6.0 | 860 | 205 | 20/ 50 | |
19 | 3/4 | 32.0 | 2.0 | 300 | 6.0 | 860 | 240 | 20/ 50 | |
22 | 7/8 | 35.0 | 2.0 | 300 | 6.0 | 860 | 280 | 20/ 50 | |
25 | 1 | 38.5 | 2.0 | 300 | 6.0 | 860 | 300 | 20/ 50 | |
32 | 1 1/4 | 45.5 | 2.0 | 300 | 6.0 | 860 | 420 | 20/ 40 | |
38 | 1 1/2 | 52.0 | 2.0 | 300 | 6.0 | 860 | 500 | 20/ 40 | |
45 | 1 3/4 | 59.0 | 2.0 | 300 | 6.0 | 860 | 500 | 20/ 40 | |
51 | 2 | 65.0 | 2.0 | 300 | 6.0 | 860 | 630 | 20/ 40 | |
64 | 2 1/2 | 79.0 | 2.0 | 300 | 6.0 | 860 | 700 | 20/ 40 |
