Place of Origin: | China |
---|---|
Brand Name: | thompson |
Minimum Order Quantity: | 4000Meter |
Price: | negotiable |
Packaging Details: | wrapped with yellow/white woven belt or plastic firm |
Delivery Time: | 15-20 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 200,000 meter per month |
Reinforcement: | 1 Or 2 Layers Of Steel Wire Braid | Material: | Synthetic Rubber |
---|---|---|---|
Color: | Black | Size: | 3/16" - 4" |
Cover: | Weather Resistant Synthetic Rubber,oil-resistant Synthetic(Nitrile). | Surface: | Smooth Surface Hydraulic Hose |
Sample: | Free | Working Pressure: | 8.7 To 45Mpa |
Business Type: | Manufacturer,Factory | Working Temperature: | -40℃ To +100℃ Or -40℉ To +212℉ |
Oem Service: | Accept | ||
High Light: | SAE 100 R2 Wire Braid Hydraulic Hose,SAE 100 R1 Wire Braid Hydraulic Hose,SAE 100 R1 4 wire hydraulic hose |

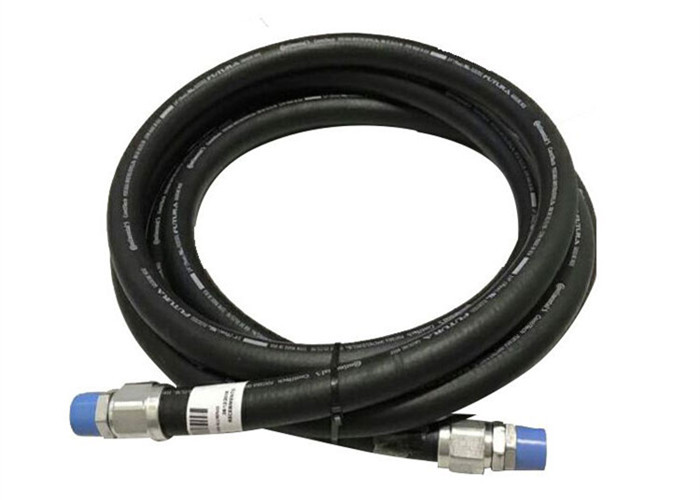

Smooth Cover Wire Braid Hydraulic Hose SAE100 R1 R2
APPLICATIONS:
SAE 100 R1AT/R2AT DIN EN853 1SN/2SN Hydraulic Hose is recommended for hydraulic system service with petroleum and water-base fluids, or general industrial service. Long-lasting cover is suitable for many mobile hydraulic applications.
Durable cover idea for mobile hydraulics (farm equipment, logging, construction, and more)
Can be used with crimp fittings or available SAE 100R2AT field-attachable fittings
Available sizes from 1/4" to 2" ID
CONSTRUCTION:
Inner tube:Oil-resistant synthetic rubber
Reinforcement: 1layer or 2layers braid of high-tensile steel wire
Outer cover: Abrasion and ozone-resistant synthetic rubber
Temp. range: -40°C to + 100°C Max.120°C intermittent
DN | Hose I.D | Hose O.D | WorkingPressure | Burst Pressure | Minimum Bend Radius | Weight | Length | ||
inch | mm | mm | MPa | MPa | mm | kg/m | meters | ||
5 | 3/16 | 4.8 | 13.3 | 45 | 180 | 90 | 0.325 | 20-100 | |
6 | 1/4 | 6.4 | 14.3 | 40 | 160 | 100 | 0.384 | 20-100 | |
8 | 5/16 | 7.9 | 16.2 | 35 | 140 | 115 | 0.460 | 20-100 | |
10 | 3/8 | 9.5 | 18.3 | 33 | 132 | 130 | 0.551 | 20-100 | |
13 | 1/2 | 12.7 | 21.3 | 27.5 | 110 | 180 | 0.667 | 20-100 | |
16 | 5/8 | 15.9 | 24.8 | 25 | 100 | 200 | 0.822 | 20-100 | |
19 | 3/4 | 19.1 | 28.5 | 21.5 | 86 | 240 | 1.020 | 20-100 | |
25 | 1 | 25.4 | 36.3 | 16.5 | 66 | 300 | 1.380 | 20-50 |
