Hengshui Thompson Hose Technologies Co., Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | thompson |
| Model Number: | HOG2B |
| Minimum Order Quantity: | 1000Meter |
| Price: | negotiable |
| Packaging Details: | wrapped with yellow/white woven belt or plastic firm |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200,000 meter per month |
| Material: | Synthetic Rubber,Rubber+Steel Wire | Color: | Black Or Other |
|---|---|---|---|
| Size: | 1/4"~2" | Cover: | Weather Resistant Synthetic Rubber |
| Application: | Industrial,suitable To Carry Hydraulic Fluids,used For Hydraulic Oil Delivery,high ImPUlse Hydraulic Applications. | Length: | 20m 40m 50m 100m |
| Type: | Hydraulic Hose | Working Temperature: | -40~+120 |
| Oem Service: | Accept,Yes | Item: | Hydraulic Hose R2 2SN |
| High Light: | Length 50m Hydraulic Pressure Hose,1/4 inch Hydraulic Pressure Hose,1/4 inch wire braided rubber hose |
||

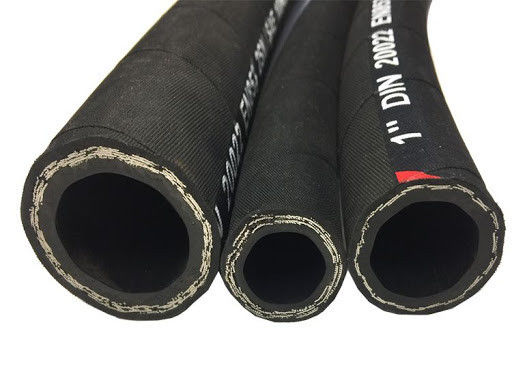

SAE 100R2 AT High Pressure Hydraulic Hose Wire Braided Rubber Hose
Steel Wire Braid Hydraulic Hose: SAE 100 R2AT/DIN EN 853 2SN
Tube: Oil resistant synthetic rubber
Reinforcement: Two high tensile steel wire braid
Cover: Abrasion and weather resistant synthetic rubber
Temperature range : -40 ℃ to +100 ℃
Applicable standards: EN 853 2SN/SAE 100 R2AT
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
| 5 | 3/16 | 4.8 | 11.1 | 13.4 | 41.4 | 6000 | 165 | 23720 | 89 | 0.32 | 50/100 |
| 6 | 1/4 | 6.4 | 12.7 | 15.0 | 40.0 | 5800 | 160 | 22840 | 102 | 0.36 | 50/100 |
| 8 | 5/16 | 7.9 | 14.3 | 16.6 | 36.0 | 5250 | 140 | 20000 | 114 | 0.45 | 50/100 |
| 10 | 3/8 | 9.5 | 16.7 | 19.0 | 33.1 | 4800 | 132 | 18840 | 127 | 0.54 | 50/100 |
| 13 | 1/2 | 12.7 | 19.8 | 22.2 | 27.6 | 4000 | 110 | 15720 | 178 | 0.68 | 50/100 |
| 16 | 5/8 | 15.9 | 23 | 25.4 | 25.0 | 3630 | 100 | 14280 | 203 | 0.8 | 50/100 |
| 19 | 3/4 | 19.0 | 27 | 29.3 | 21.5 | 3120 | 85 | 12280 | 241 | 0.94 | 50/100 |
| 25 | 1 | 25.4 | 34.9 | 38.0 | 16.5 | 2400 | 65 | 9420 | 305 | 1.35 | 50 |
| 32 | 1 1/4 | 31.8 | 44.5 | 48.3 | 12.5 | 1820 | 50 | 7140 | 419 | 2.15 | 20/40 |
| 38 | 1 1/2 | 38.1 | 50.8 | 54.6 | 9.0 | 1310 | 36 | 5140 | 508 | 2.65 | 20/40 |
| 51 | 2 | 50.8 | 63.5 | 67.3 | 8.0 | 1160 | 32 | 4560 | 635 | 3.42 | 20/40 |
Featured Description
Structure of 2hydraulic hose manufacturers EN853 1SN 2SN /SAE 100 R1 R2 Wire Braided hydraulic hose
High pressure hydraulic hose Consists of inner tube, middle layer, two wire reinforcements and cover. Inner tube is to transmit liquid under pressure and protect wire against corrosion while cover is to protect wire against abrasion, wire layer is the structure materials that providing reinforcement.
Application
High pressure hydraulic hose Mainly used in mine hydraulic support, oil exploration, suitable to engineer construction, crane transport, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery various machine tools.
