Hengshui Thompson Hose Technologies Co., Ltd.
| Place of Origin: | China |
|---|---|
| Brand Name: | thompson |
| Minimum Order Quantity: | 4000 Meter |
| Price: | negotiable |
| Packaging Details: | wrapped with yellow/white woven belt or plastic firm |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200,000 meter per month |
| Reinforcement: | 1 Or 2 Layers Of Steel Wire Braid | Material: | Synthetic Rubber |
|---|---|---|---|
| Color: | Black | Size: | 3/16" - 4" |
| Cover: | Weather Resistant Synthetic Rubber,oil-resistant Synthetic(Nitrile). | Surface: | Smooth Surface Hydraulic Hose |
| Sample: | Free | Working Pressure: | 8.7 To 45Mpa |
| Business Type: | Manufacturer,Factory | Working Temperature: | -40℃ To +100℃ Or -40℉ To +212℉ |
| Oem Service: | Accept | ||
| High Light: | 3/16" Wire Braid Hydraulic Hose,ISO 1436-1 1SN Wire Braid Hydraulic Hose,3/16" hydraulic pressure pipe |
||

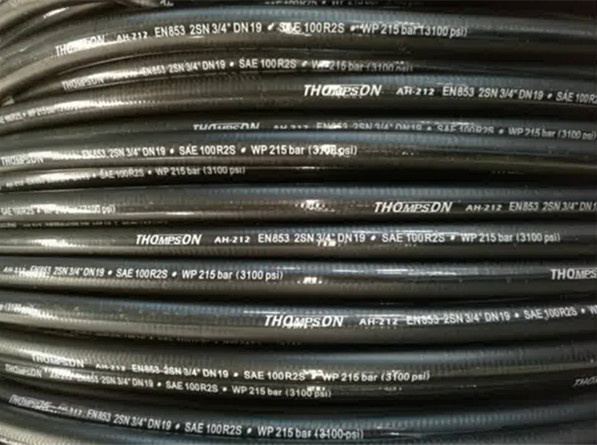

Wire Braid Flexible Hydraulic Hose From 3/16" To 1" With Easy-Clean Smooth Cover
Applicable standards: EN 853 1SN / SAE 100 R1S / ISO 1436-1 1SN
EN 853 2SN / SAE 100 R2S / ISO 1436-1 2SN
Size available from 3/16 to 1 inch, it can be made sepcially for smooth cover, and it's a market habit.
Most preferred by customers from Japan and South Korea.
The most important feature of the tube is that it is easy to clean after being stained, and the braiding quality of the pipe can be judged by the texture formed by the outer glue and the steel wire layer.
| DN | Hose I.D | Hose O.D | WorkingPressure | Burst Pressure | Minimum Bend Radius | Weight | Length | ||
| inch | mm | mm | MPa | MPa | mm | kg/m | meters | ||
| 5 | 3/16 | 4.8 | 13.3 | 45 | 180 | 90 | 0.325 | 20-100 | |
| 6 | 1/4 | 6.4 | 14.3 | 40 | 160 | 100 | 0.384 | 20-100 | |
| 8 | 5/16 | 7.9 | 16.2 | 35 | 140 | 115 | 0.460 | 20-100 | |
| 10 | 3/8 | 9.5 | 18.3 | 33 | 132 | 130 | 0.551 | 20-100 | |
| 13 | 1/2 | 12.7 | 21.3 | 27.5 | 110 | 180 | 0.667 | 20-100 | |
| 16 | 5/8 | 15.9 | 24.8 | 25 | 100 | 200 | 0.822 | 20-100 | |
| 19 | 3/4 | 19.1 | 28.5 | 21.5 | 86 | 240 | 1.020 | 20-100 | |
| 25 | 1 | 25.4 | 36.3 | 16.5 | 66 | 300 | 1.380 | 20-50 | |
