Place of Origin: | China |
---|---|
Brand Name: | thompson |
Minimum Order Quantity: | 1000Meter |
Price: | negotiable |
Packaging Details: | wrapped with yellow/white woven belt or plastic firm |
Delivery Time: | 15-20 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 200,000 meter per month |
Reinforcement: | Textile Braided High Tensile Synthetic Yarn | Material: | Synthetic Rubber |
---|---|---|---|
Color: | Black Or Others | Size: | 1/4-2" Or 6mm To 51mm |
Cover: | Abrasion Weather Resistant Synthetic Rubber | Length: | 10M - 100M |
Certification: | ISO9001 | Type: | Manufacture |
Surface: | Smooth Or Wrapped | Temperature: | -40℃-120℃ |
Standard: | SAE/DIN | Application: | Used For Transportation Of Water,Petroleum Base Hydraulic Fluids |
Tube: | Oil Resistant Synthetic Rubber | ||
High Light: | SAE 100 R3 Standard Hydraulic Pipe Line,SAE J517 Standard Hydraulic Pipe Line,SAE 100 R3 flex hydraulic hose |

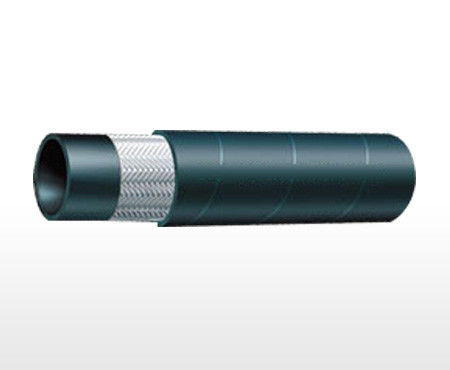

Fiber Braided Hydraulic Hose: SAE J517 TYPE 100 R3 STANDARD
Fibre Braided Hydraulic Hose: SAE J517 TYPE 100 R3 STANDARD
Tube : Oil resistant synthetic rubber
Reinforcement : two high tensile steel fibre braid (2T/B)
Cover Compound : Abrasion and weather resistant synthetic rubber
Temperature range : -40 ℃ to +100 ℃
DN | Hose I.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
inch | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
5 | 3/16 | 4.8 | 12.7 | 10.5 | 1520 | 42.0 | 6500 | 75 | 0.16 | 50/100 |
6 | 1/4 | 6.4 | 14.3 | 8.7 | 1350 | 34.8 | 5300 | 75 | 0.19 | 50/100 |
8 | 5/16 | 7.9 | 17.5 | 8.4 | 1300 | 33.6 | 5200 | 100 | 0.26 | 50/100 |
10 | 3/8 | 9.5 | 19 | 7.8 | 1200 | 31.2 | 4840 | 100 | 0.28 | 50/100 |
13 | 1/2 | 12.7 | 23.8 | 7.0 | 1080 | 28.0 | 4340 | 125 | 0.4 | 50/100 |
16 | 5/8 | 15.9 | 27 | 6.1 | 945 | 24.4 | 3780 | 140 | 0.55 | 50/100 |
19 | 3/4 | 19.0 | 31.8 | 5.2 | 800 | 20.8 | 3220 | 150 | 0.69 | 50/100 |
25 | 1 | 25.4 | 38 | 3.9 | 600 | 15.6 | 2420 | 205 | 0.82 | 50 |
32 | 1 1/4 | 31.8 | 44.4 | 2.6 | 40 | 10.4 | 1610 | 250 | 1.00 | 20 to 40 |
